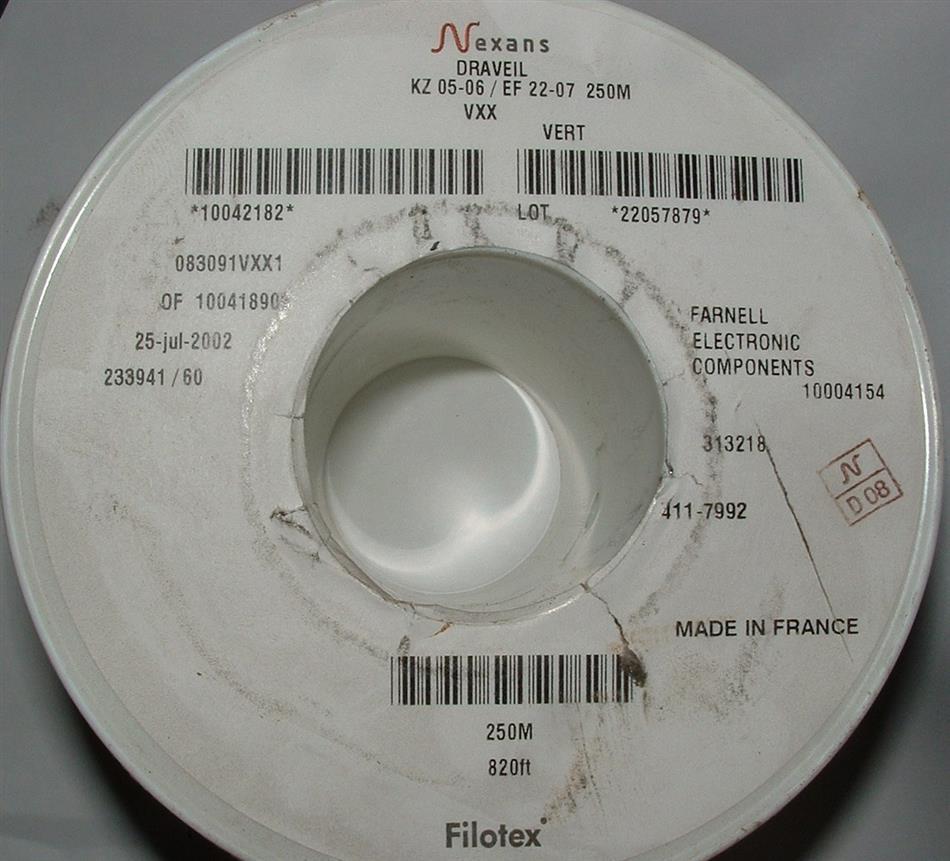

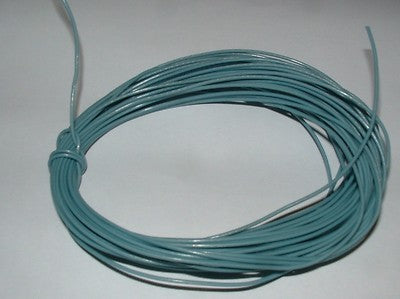

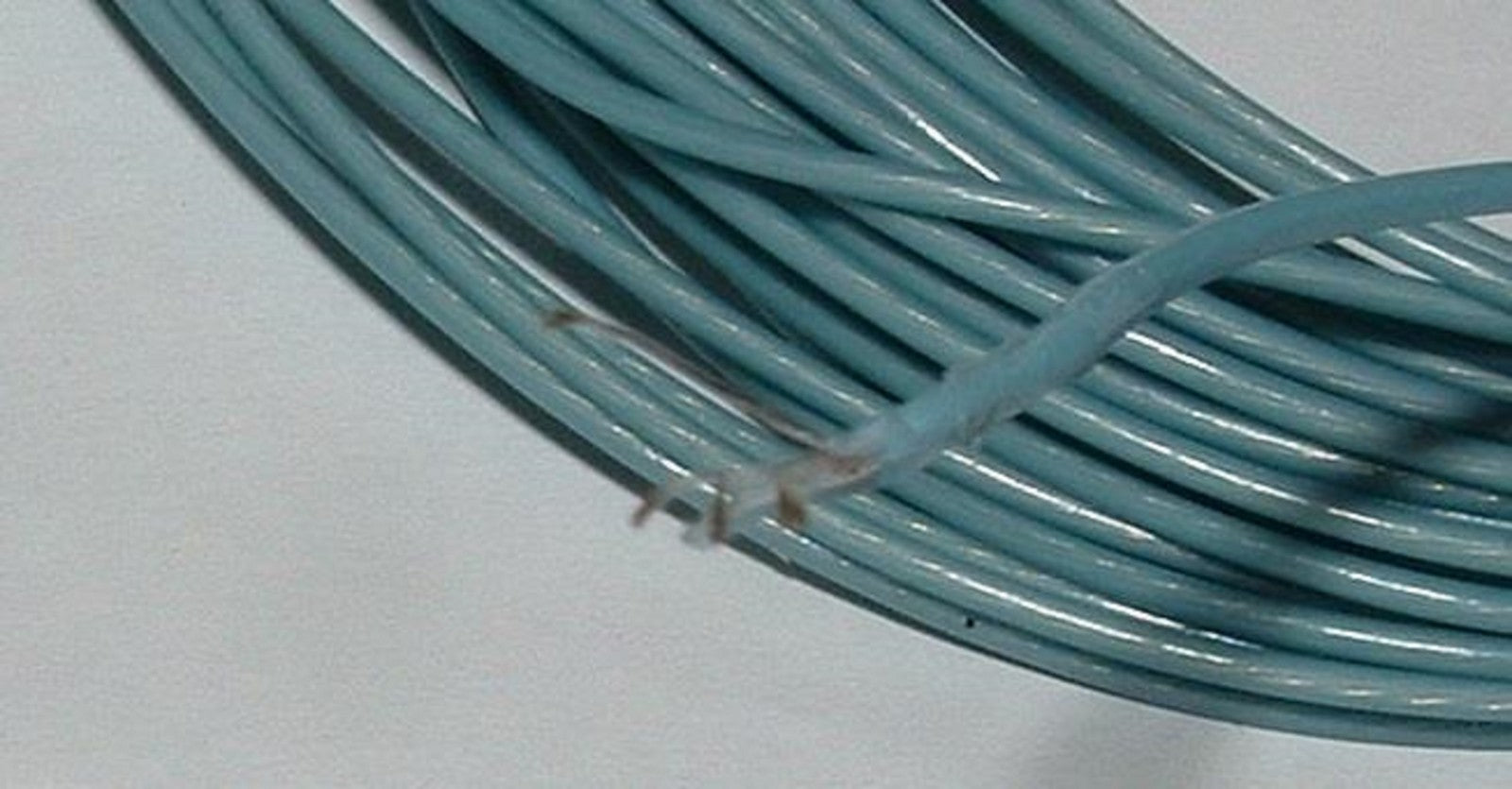

10m coil grey PTFE / teflon wire 0.34mm csa 22awg Nexans kz05-06 cable

10m coil grey PTFE / teflon wire 0.34mm csa 22awg Nexans kz05-06

• Conductor Size AWG: 22AWG
• Conductor Area CSA: 0.34mm²
• Jacket Material: PTFE (Polytetrafluoroethylene)
• Conductor Material: Copper
• External Diameter: 1.37mm
• Voltage Rating: 600V
• No. of Strands x Strand Size: 7 x 0.25mm
• Conductor Diameter Max: 0.75mm
• Conductor Make-up: 7 / 0.25mm
• Current Rating: 2A
• Jacket Material: PTFE
• Operating Temperature Max: 200°C
• Operating Temperature Min: -55°C
• Outer Diameter: 1.37mm
• Outside Diameter Max: 1.37mm
• Outside Diameter Min: 1.17mm
• Resistance per Metre: 54.4ohm/km
• Voltage Rating V AC: 600V
