Mercury

20m coil of white 100U ofc copper satellite & digital TV coaxial cable

Name: 20m coil of white 100U ofc copper satellite & digital TV coaxial cable
Brand: Mercury
SKU: 403684026064
Price: 12.0 GBP
Availability: InStock

£12.00 GBP

£0.60 m

Sale Sold out

Tax included.

Product variants

Quantity

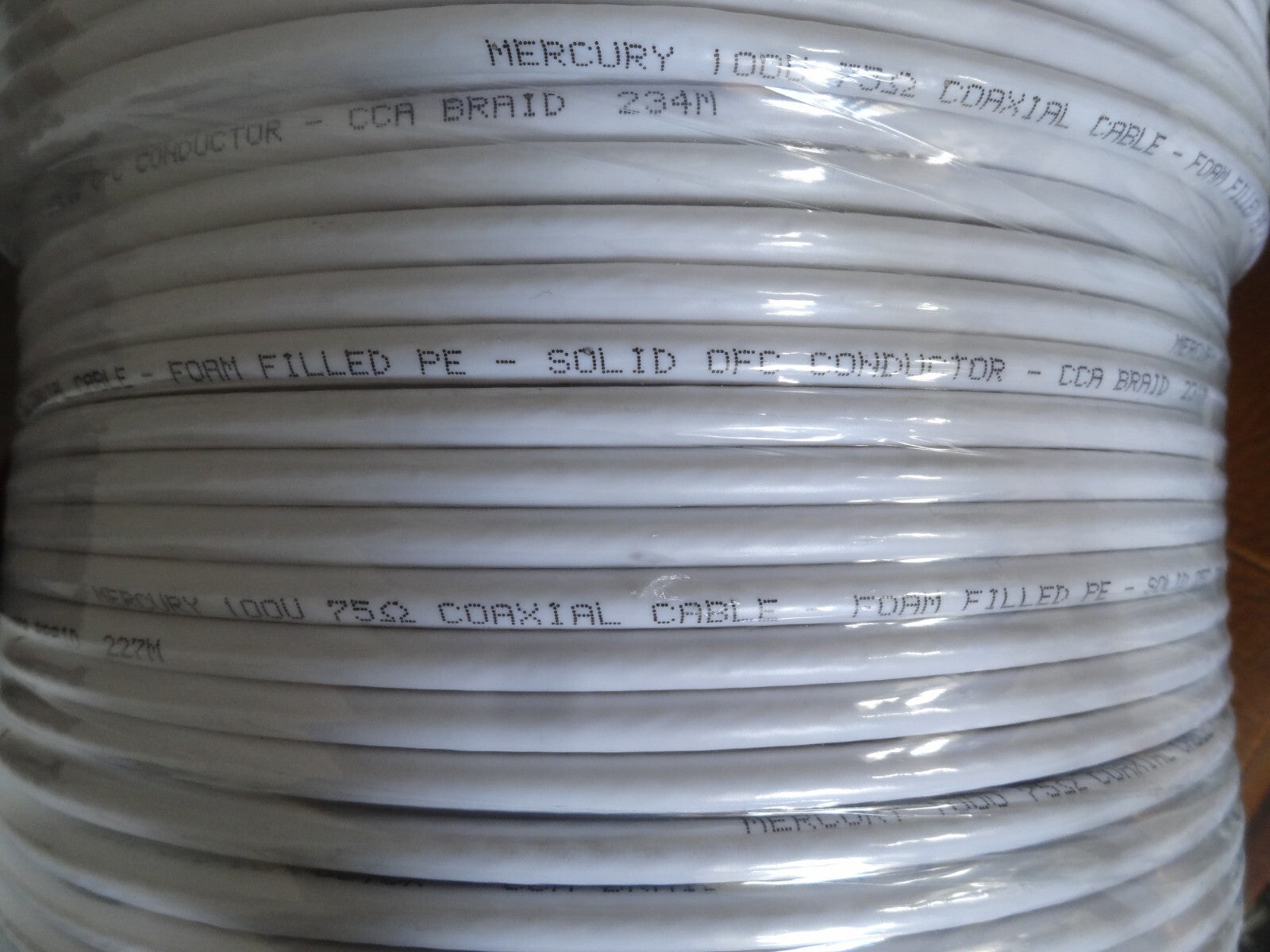

20m coil 100U 75 Ohms Foam Filled Coaxial Cable

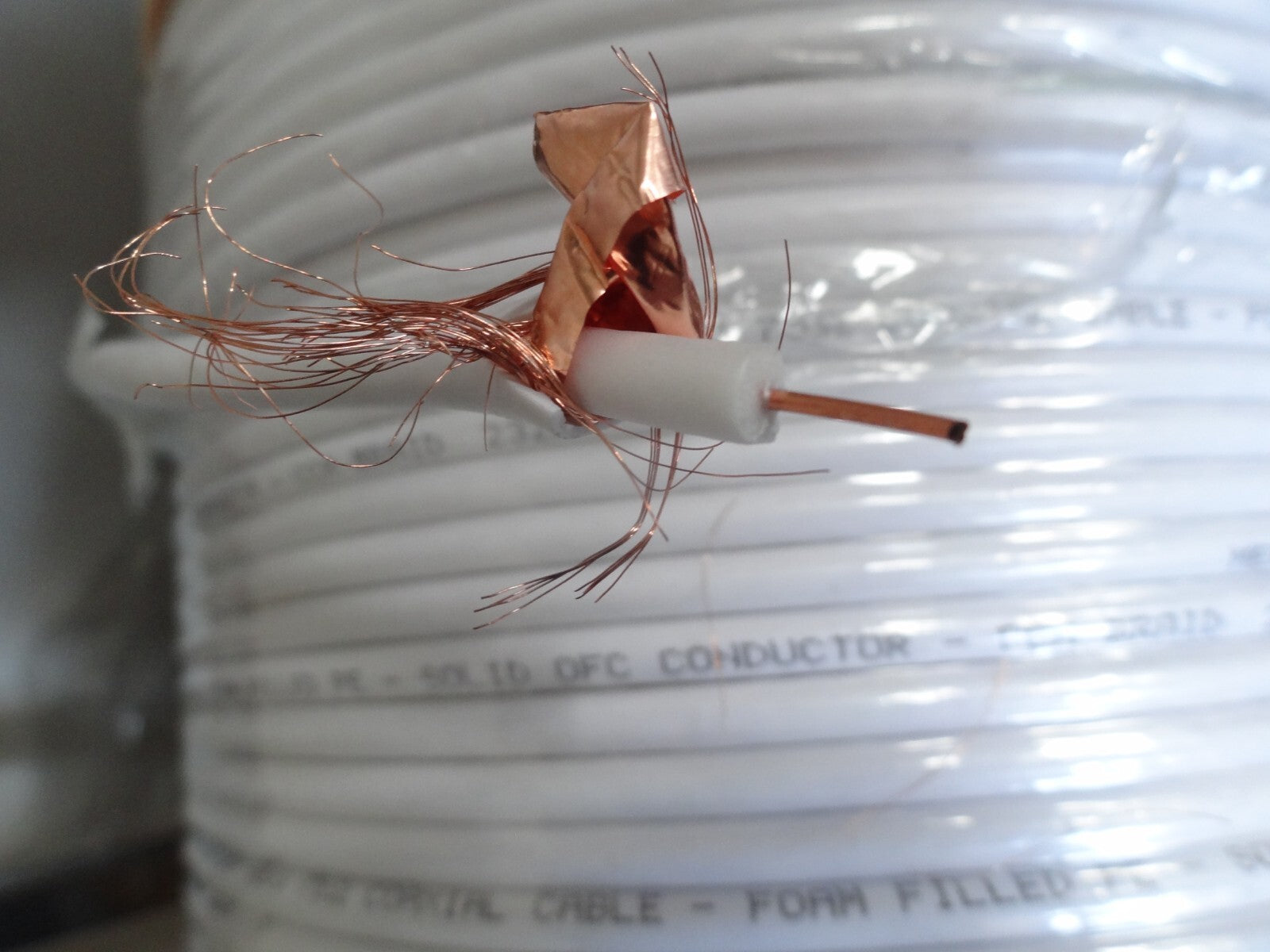

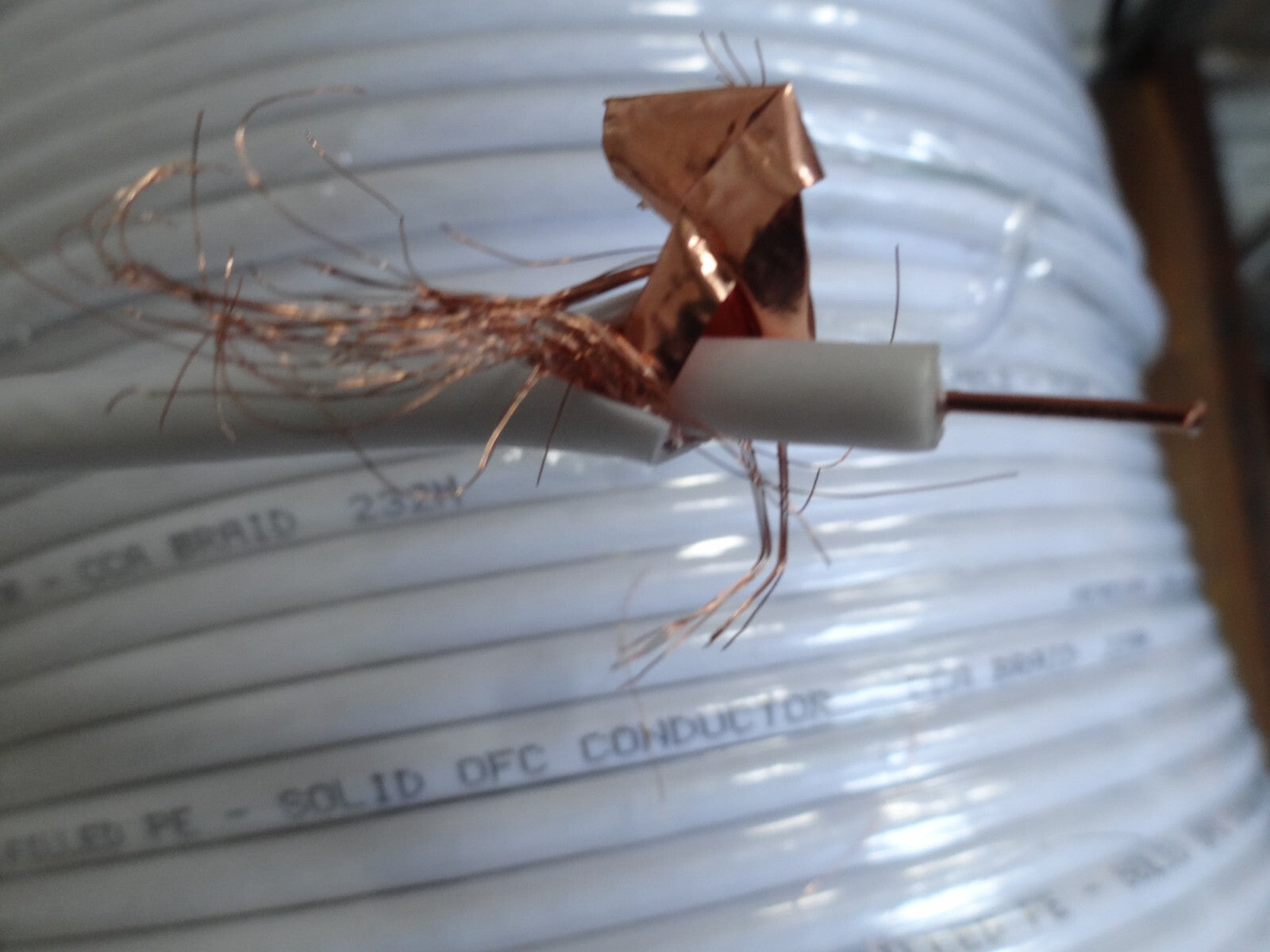

75 Ohms 100U coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

specification

Foam filled PE dielectric 4.6mmØ foam PE

Copper foil screen

CCA braid

Conductor diameter 1mm Ø CSA0.79mm² Conductor material Solid OFC

Braid64 x 0.12mmØ Braid material CCA

Screen Copper foil

Cable diameter 6.6mmØ

Impedance75 Ohms

Capacitance54pF/m

Velocity factor83%

Return loss 5-400MHz28dB min./100m
