Hamlin HE221L7577 latching reed relay 5V SPST
Hamlin HE221L7577 latching reed relay 5V SPST
Regular price
£5.86 GBP
Regular price
Sale price
£5.86 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
new old stock

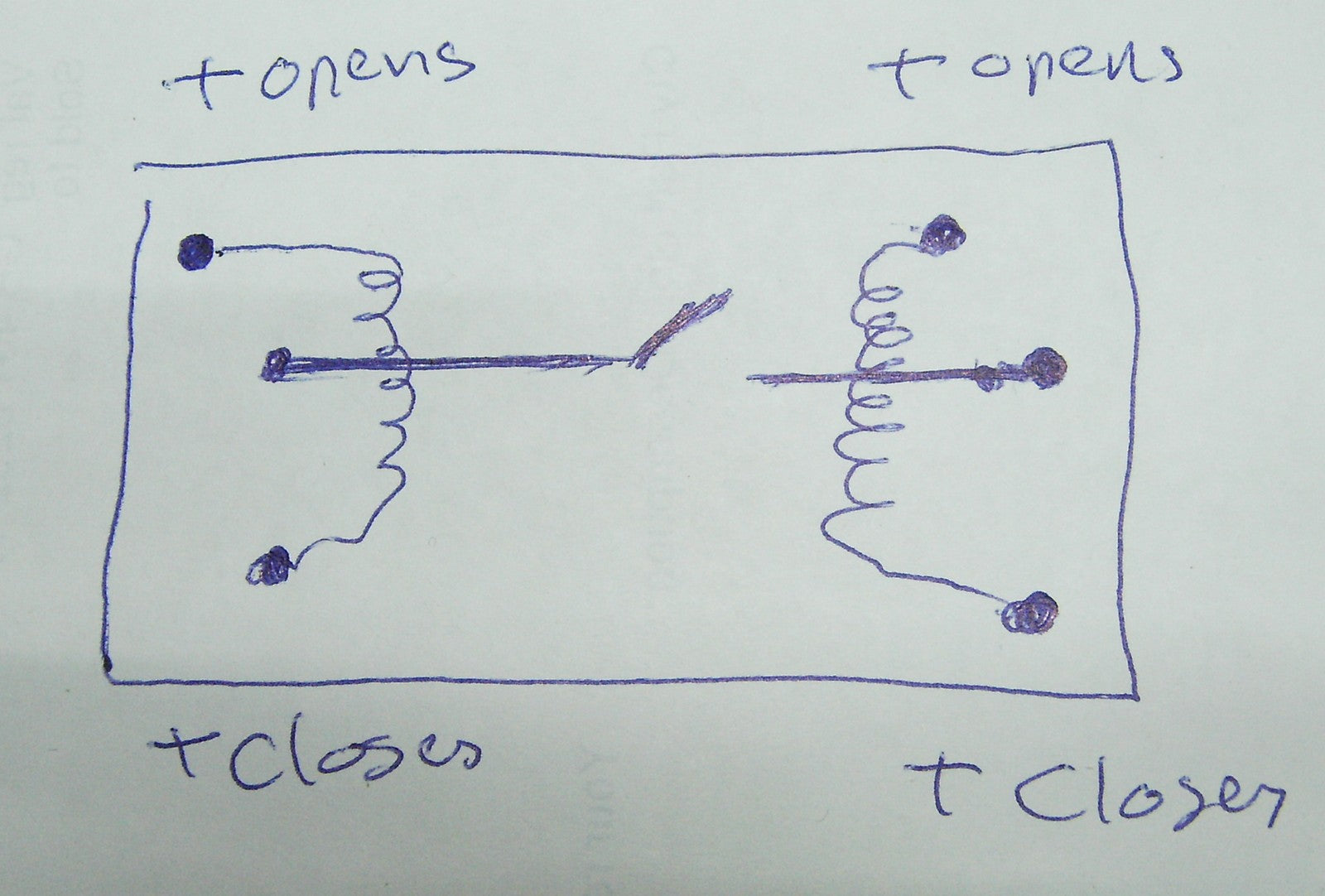

You get a latching reed relay I could not find any data on them. The middle two pins are the relay contacts. When I tested them the coil resistance was about 820 ohms there are 2 isolated coils at each end of the relay when positive was applied to the slightly offset pin the contact opened and it closed with the power connected with the other polarity. The relay could be operated with either coil. It seemed to work ok on 5 volts but my guess is it is made for slightly higher voltage and I am guessing that the current rating of the contacts is around 200mA

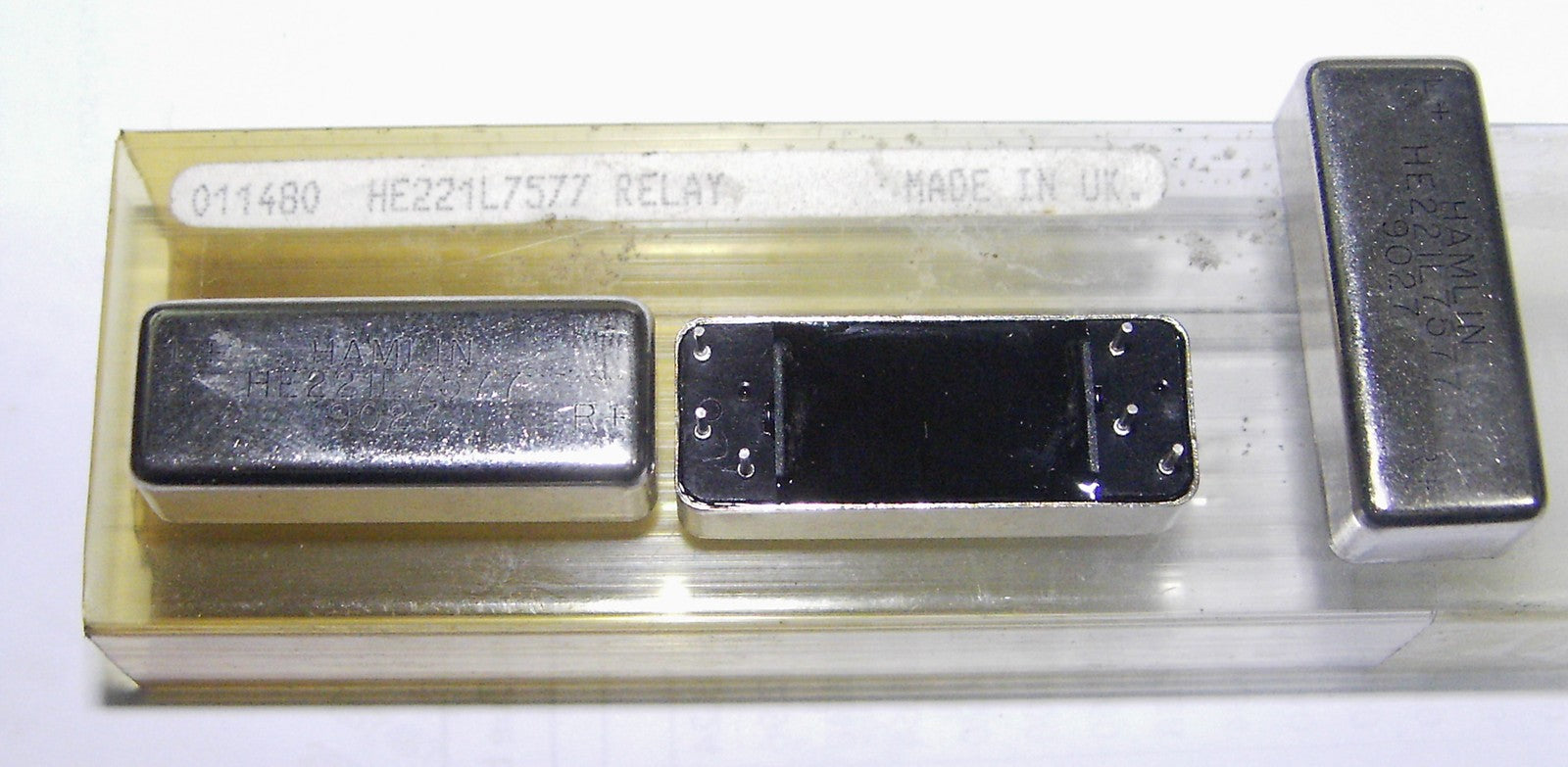

the picture shows 3 relays you get one
shelf GB2
