25x yellow butt conector with adhesive lined heatshrink cover DHSB-5 splice

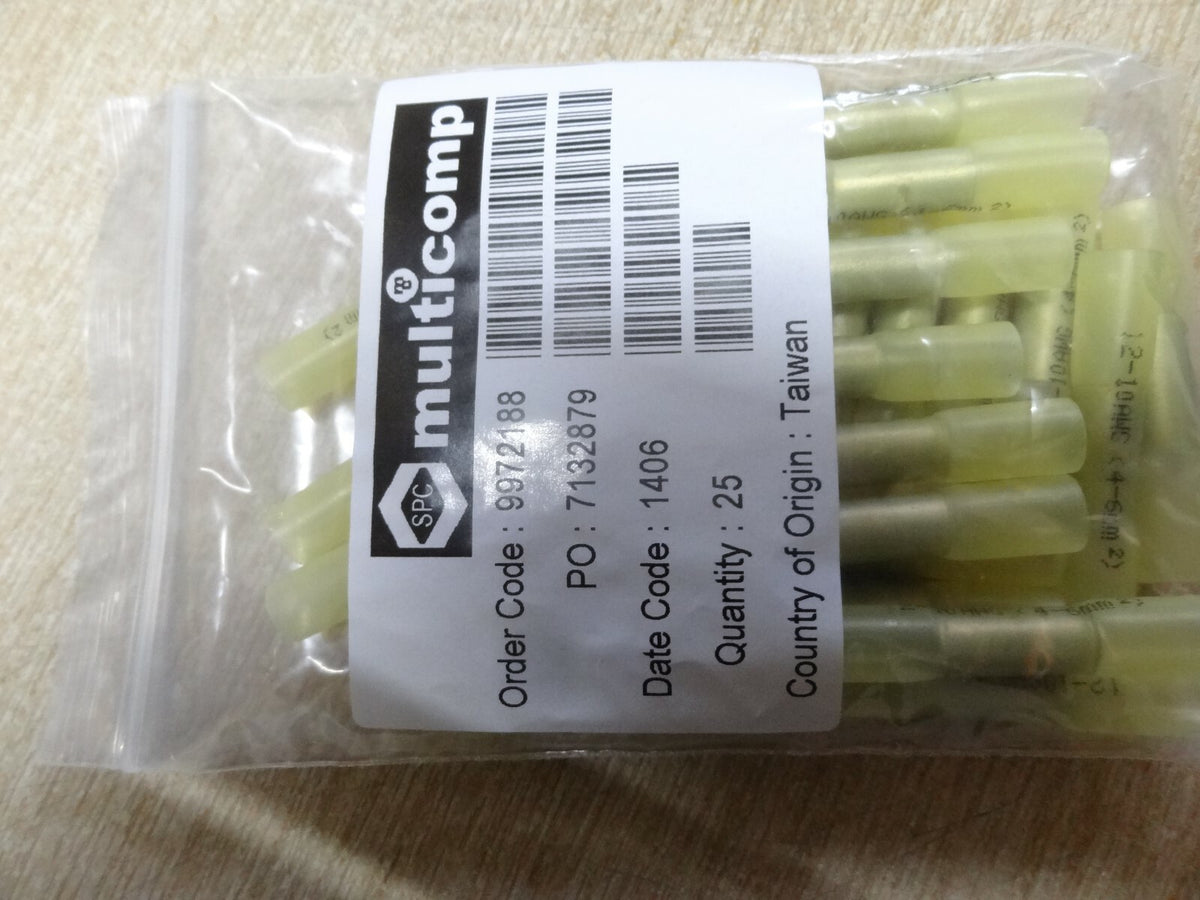

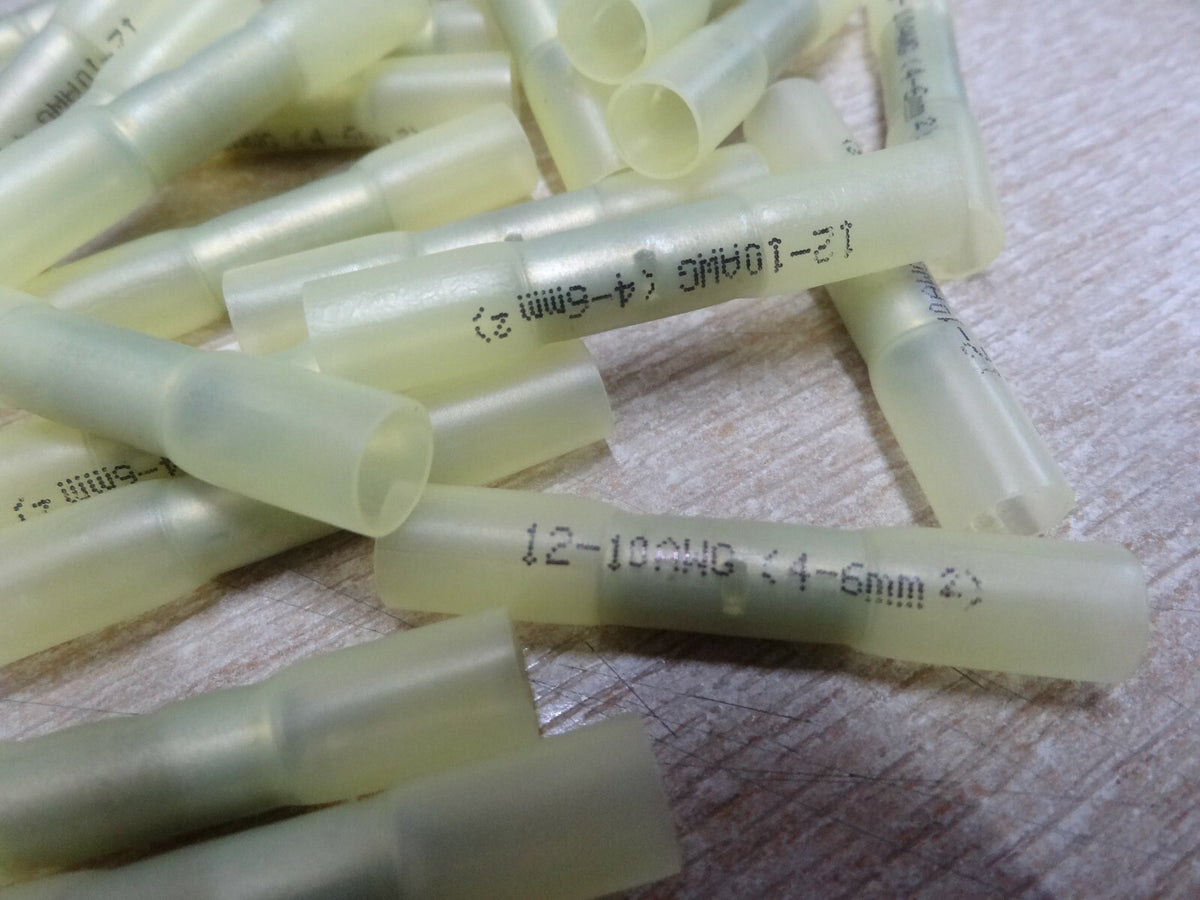

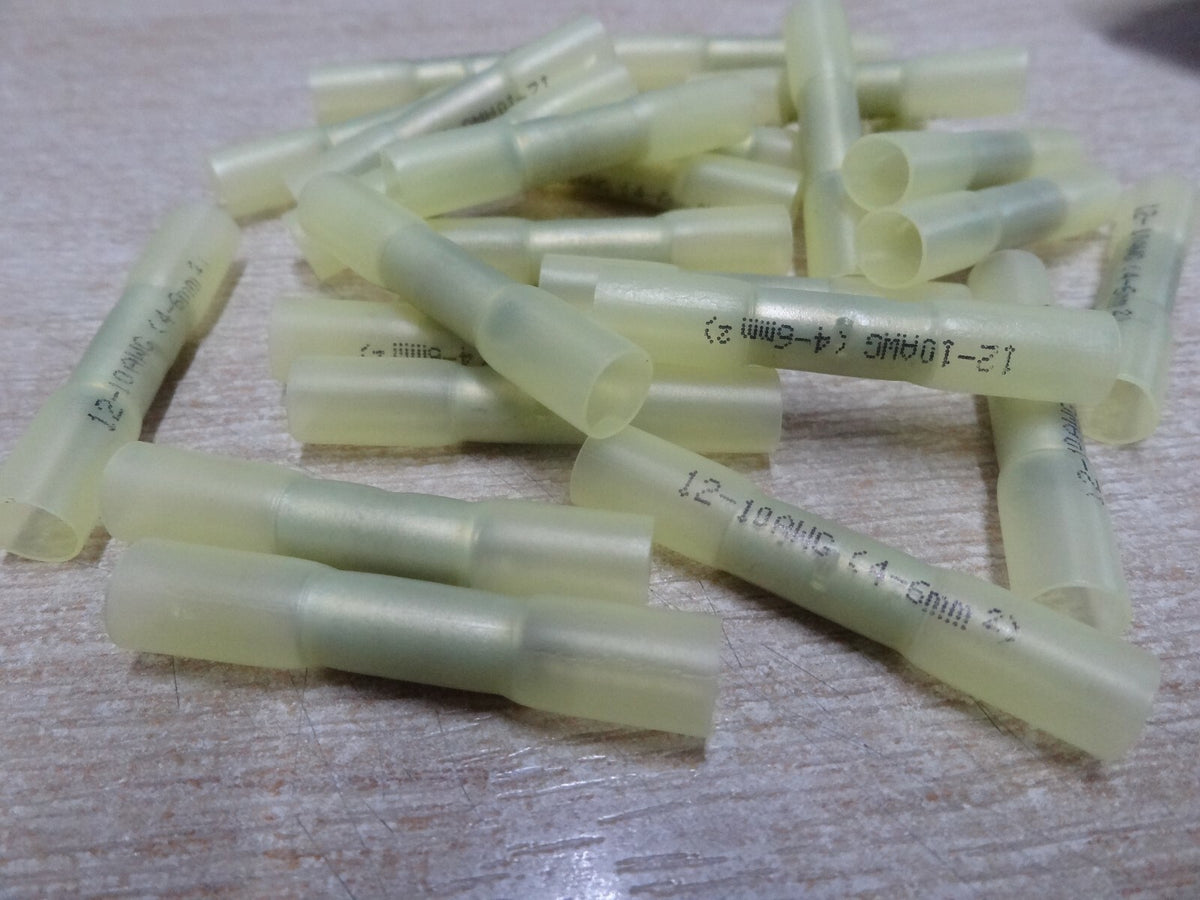

You get a pack of 25 yellow butt connectors with an adhesive lined heat-shrink cover.

Recommended cable size 4mm² to 6mm² (cross sectional area) / 12 - 10 A.W.G (max 3.2mm diameter conductor)

Heat shrinkable sealed splices providing a tough and long lasting environmental seal against immersion in solvents, oils, fluids and salt water.



The wire insulation should be stripped to 8mm and then crimped into the ends of the butt splice.

Hot air ( 150'C )should then be applied to the sleeve until the tubing has shrunk to the cable size and the adhesive flows from the end of the splice, giving a fully sealed joint and additional strain relief.

Shelf GA

About us We sell electronic parts in Chesterfield England You can view this item before you bid
