the contact arrangement is shown below 1 to 12 are the switch position and a to n are the pins and the Xs indicate pins joined together. the centre pins D and K are the common connections
1
2
3
4
5
6
7
8
9
10
11
12
a
x
b
x
c
X
d
X
X
x
X
X
X
e
X
f
X
g
X
h
X
I
x
j
x
k
x
x
X
x
X
X
l
X
m
X
n
X

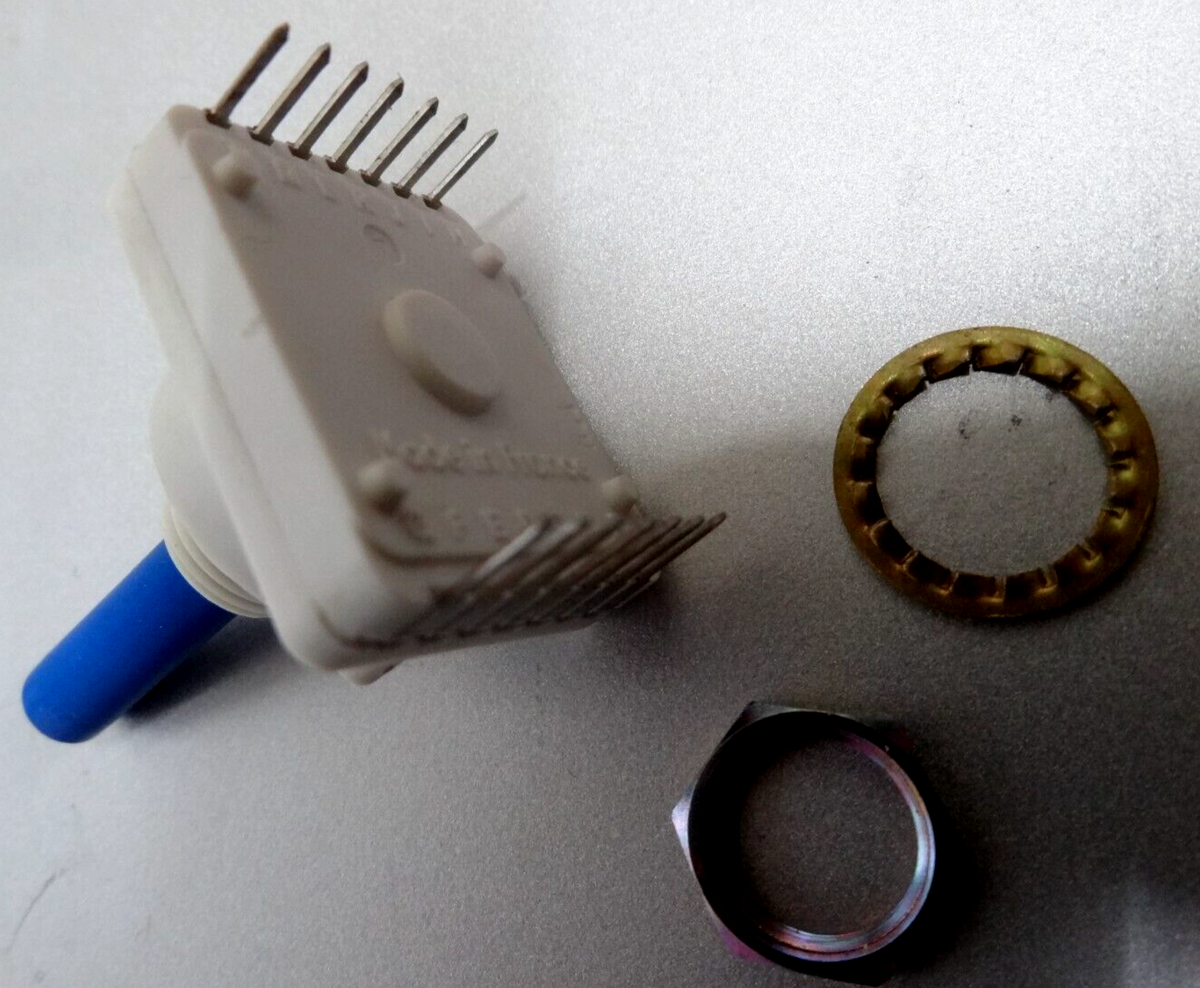

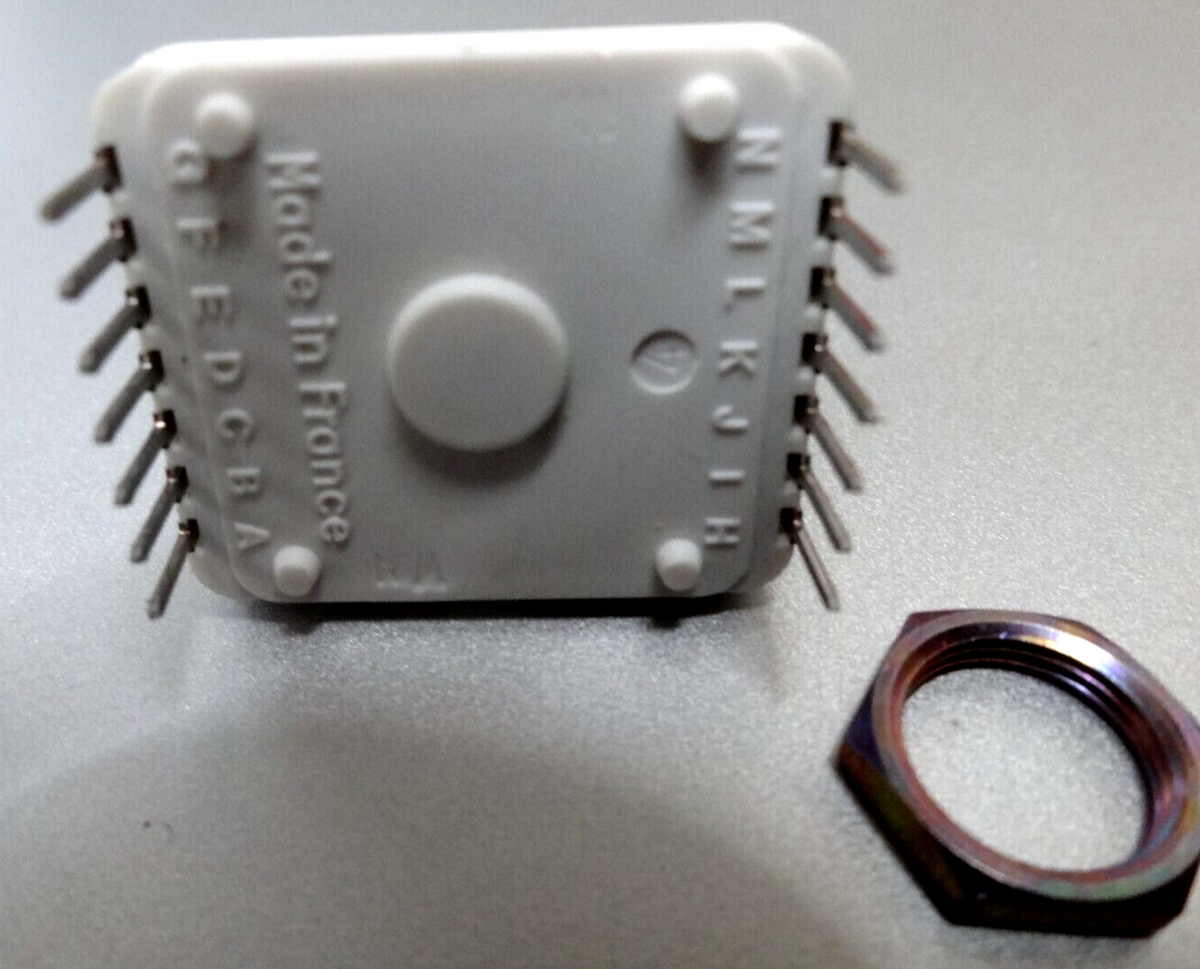

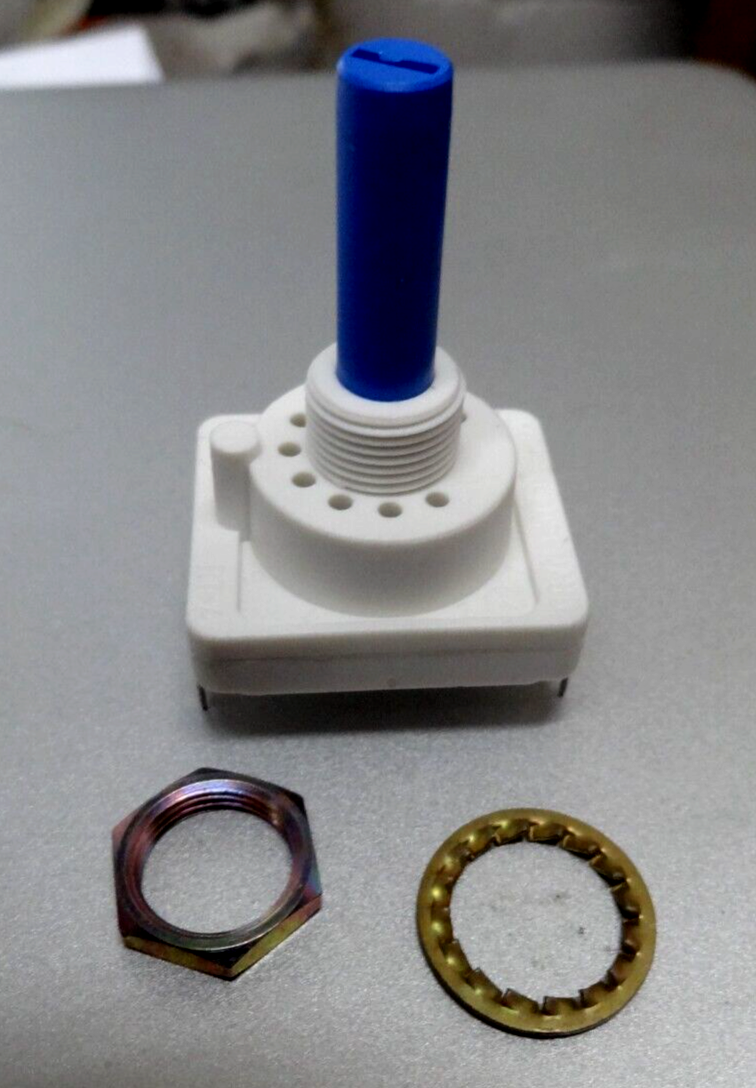

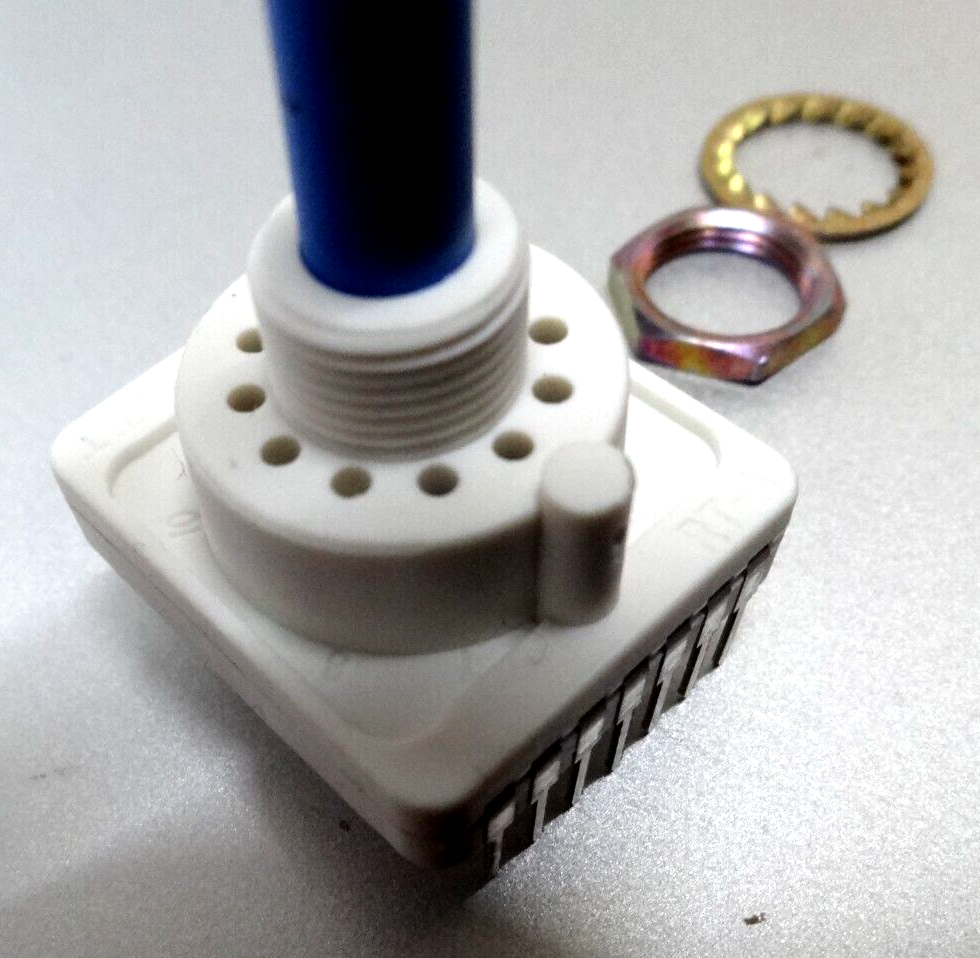

The size is 22mm x 26mm x 37.5mm tall (excluding the pcb pins ) the shaft is 6mm diameter x 19mm long the mounting hole is about 10 mm
the current rating is 150mA switching and up to 5A carrying current.
