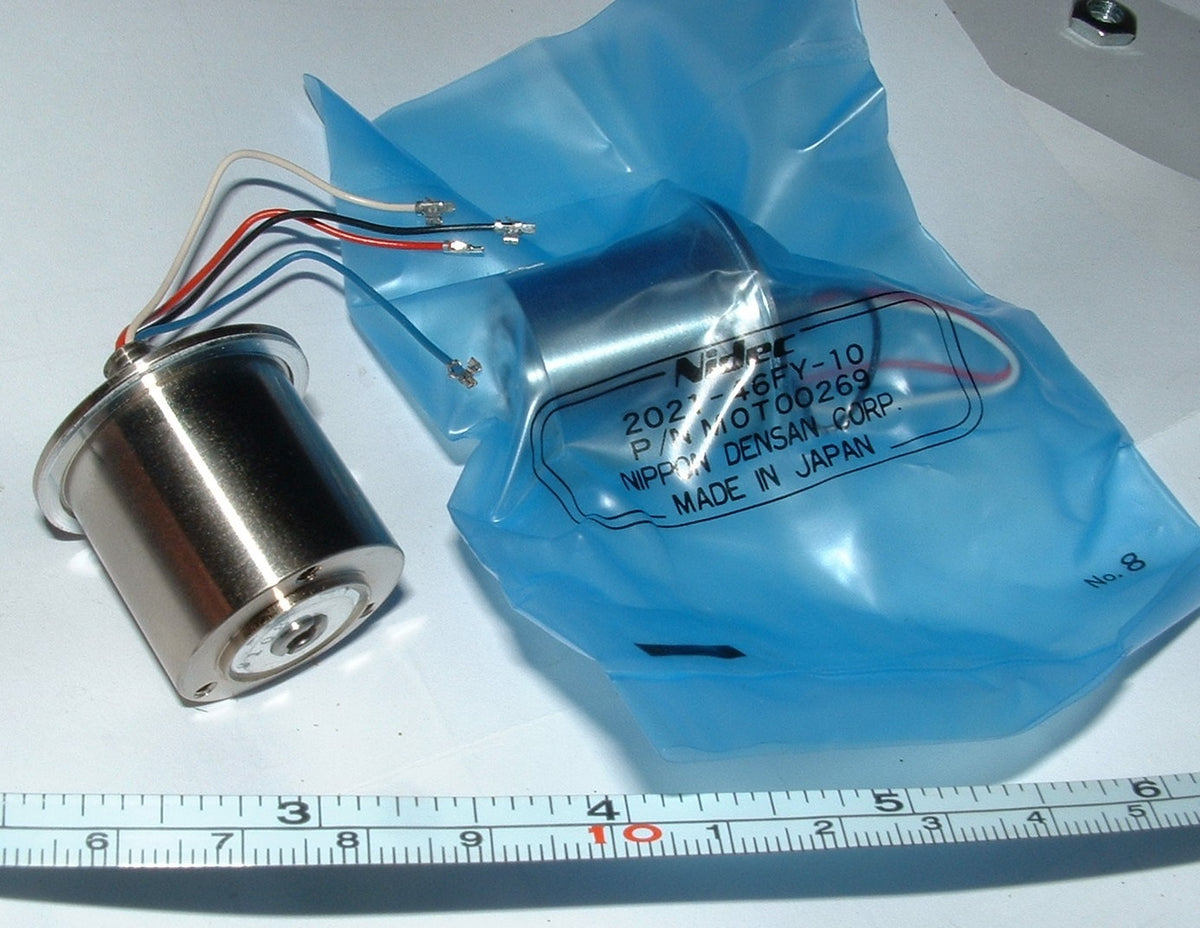

80 x Nidec disc drive spindle motor 2021-46FY-10 / MOT00269

box of 80  x Nidec spindle motor 2021-46FY-10 /  MOT00269

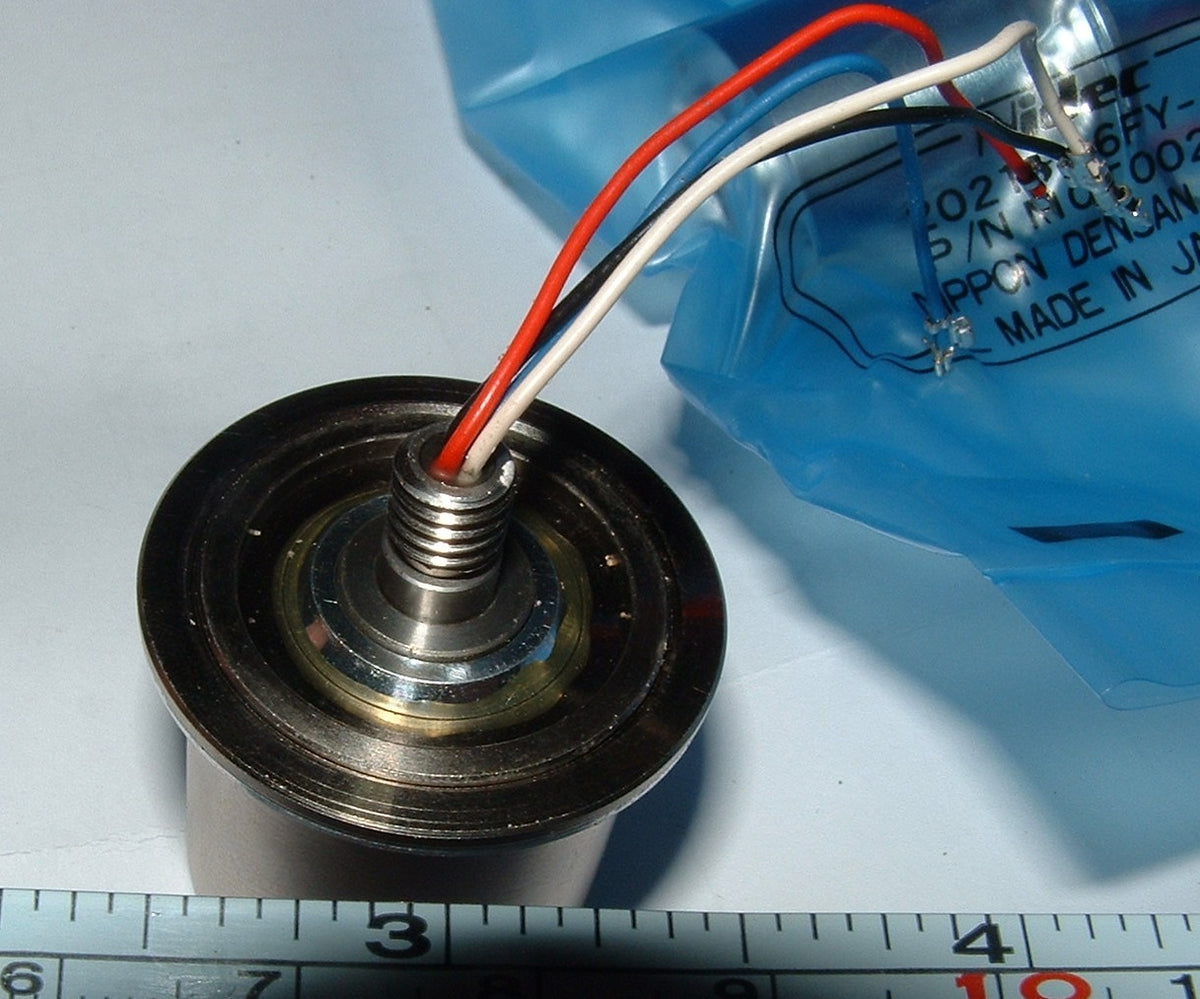

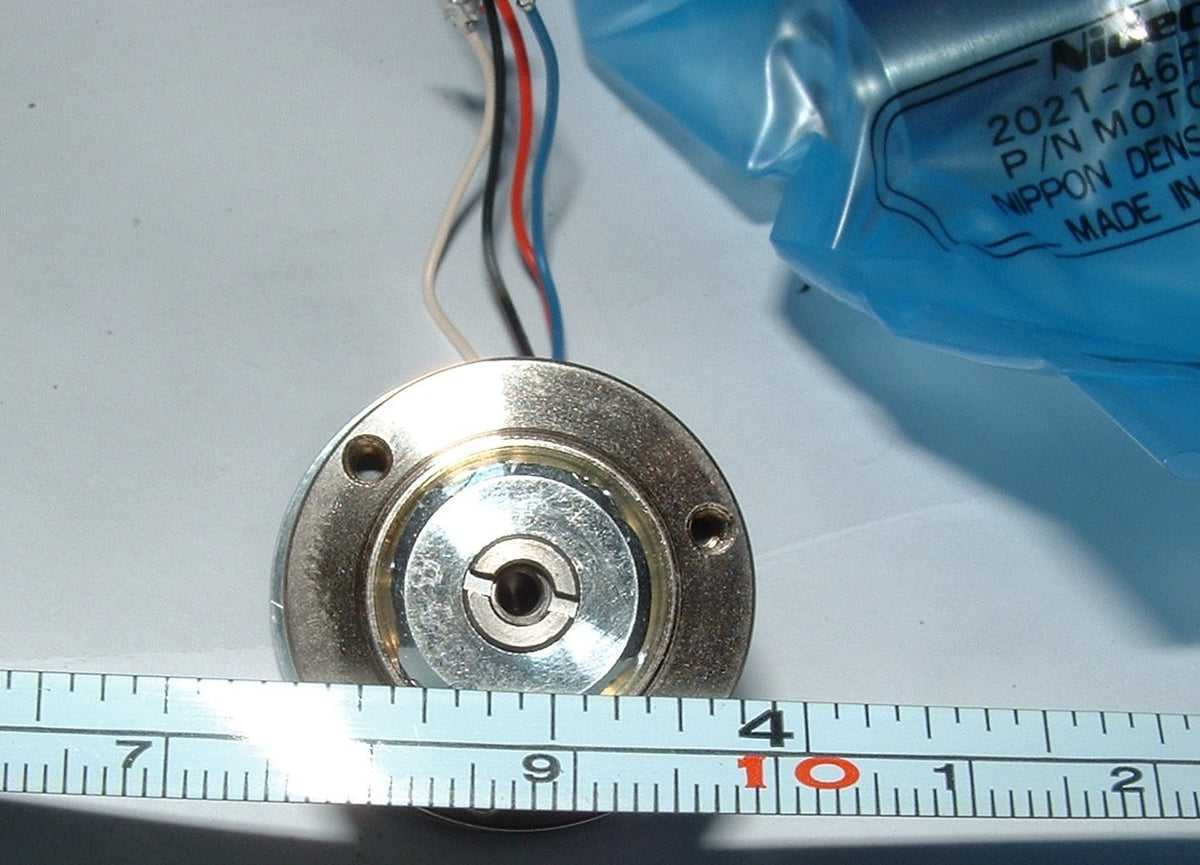

this motor has a M6 thread on the stationary center part with the wires and an M3 hole on the other side. The outside turning part has 3 M2.5 holes. It has 4 wires black is common and each of the other wires measures about 2 ohms to the black.

To make them turn you need to switch power from coil to coil.  I could not find any data but would guess the coils are rated at 5 volts when pulsed.

the widest part of the motor is about 31mm diameter the rest is 25mm diameter it is about 26mm tall excluding the M6 threaded part

check out my other listings for small quantities
