BINDER

Binder 763 cordset 3 way 90°female plug 5m sensor cable 79-3434-35-04 M12

£8.85 GBP

Sale Sold out

Tax included.

Product variants

Quantity

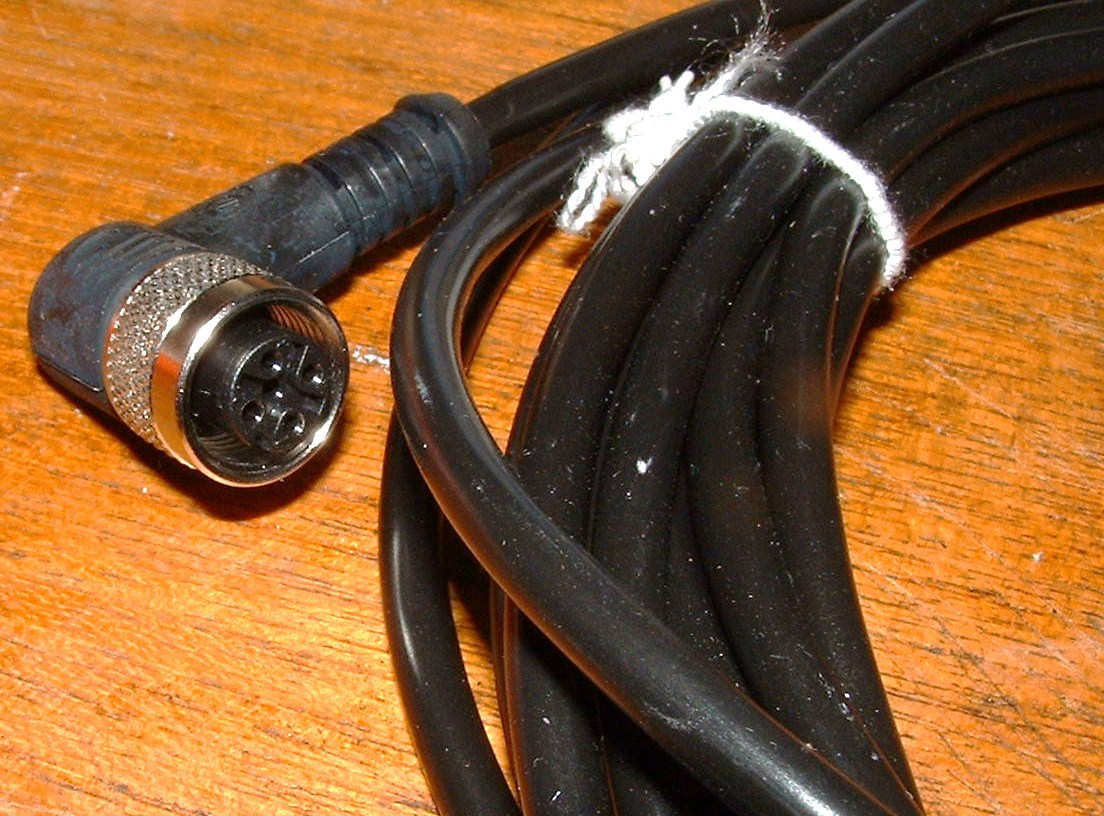

Binder Series 763: cordset, 3 way 90° female plug, 5m sensor cable 79 3434 35 04

These are new and unsused in sealed Farnell branded bags the Farnell number is 3529824 the cable is 5m long with brown black and blue internal wires
See my other listings for the PVC cable version
Specifications
Locking System: M12 A-Coding
Number of Contacts: 3
Gender: Female
Shell Material: Plastic
Maximum Diameter (mm): 14.5
Mounting Style: Cable-mounted
Termination: Overmolded
Protection: IP 68
Shielding: non-shielded
Contact Plating: Gold
Rated Voltage (V): 250
Rated Current (A): 4
Cable Length (M): 5
Cable Material: PUR
Wire Gauge (max AWG): 22

Form: Right-angle

The Series 763 M12 locking, single-ended cordsets are a Euro-style sensor connector ideally suited for factory automation, process control, industrial instrumentation, and commercial electronics. Connectors have industry-standard A-coding and have "Hexagon" locking sleeves for hand-tightening or torquing of connections. Cordsets are PUR or PVC overmolded with shielded or non-shielded versions. Some have UL approvals. Most have an environmental protection with an IP68 rating. Contacts are gold-plated and range from 3 to 12 per connector.

shelf CL-2C5
