Binder Series 763 cordset 3 way 90° female plug, 5m sensor cable 79 3434 815 04

Binder Series 763: cordset, 3 way 90° female plug, 5m  sensor cable 79 3434 15 04

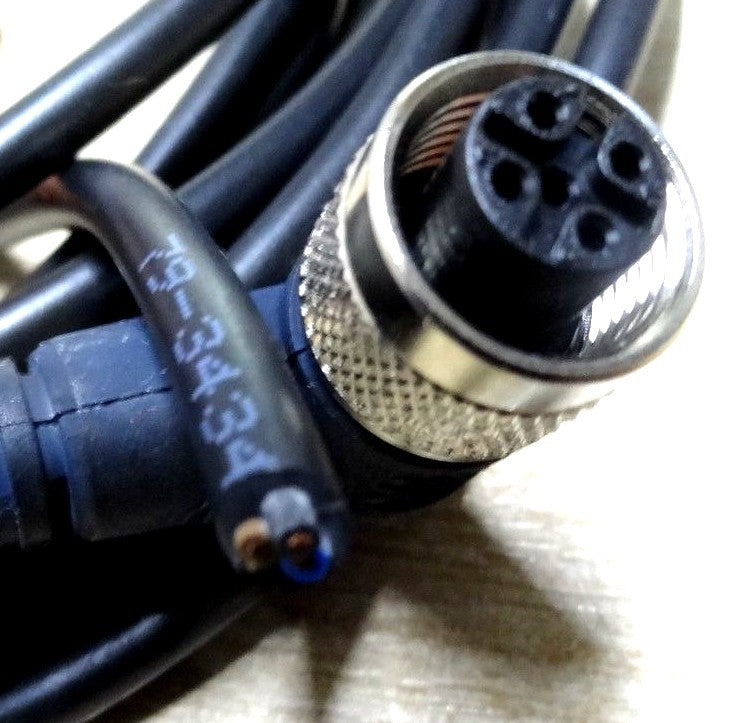

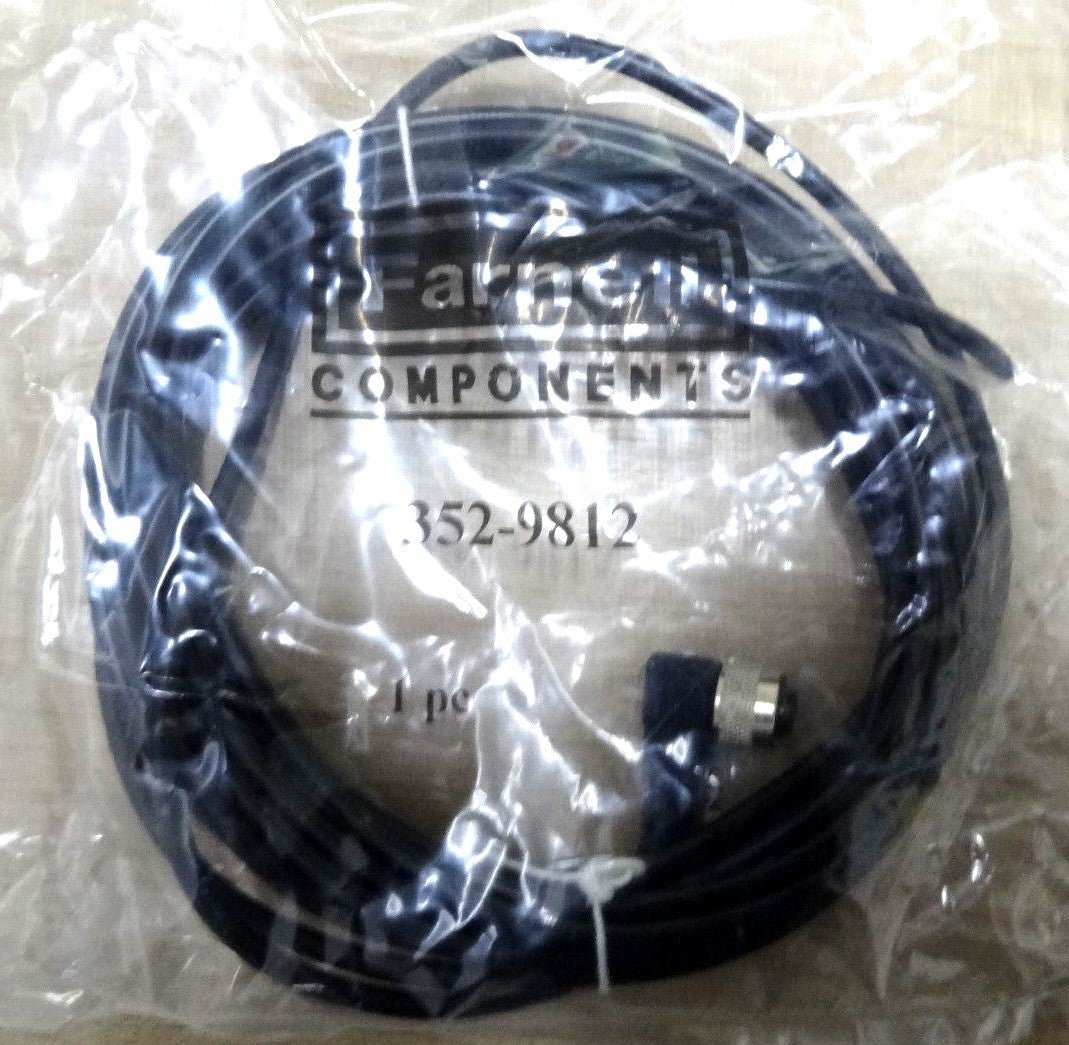

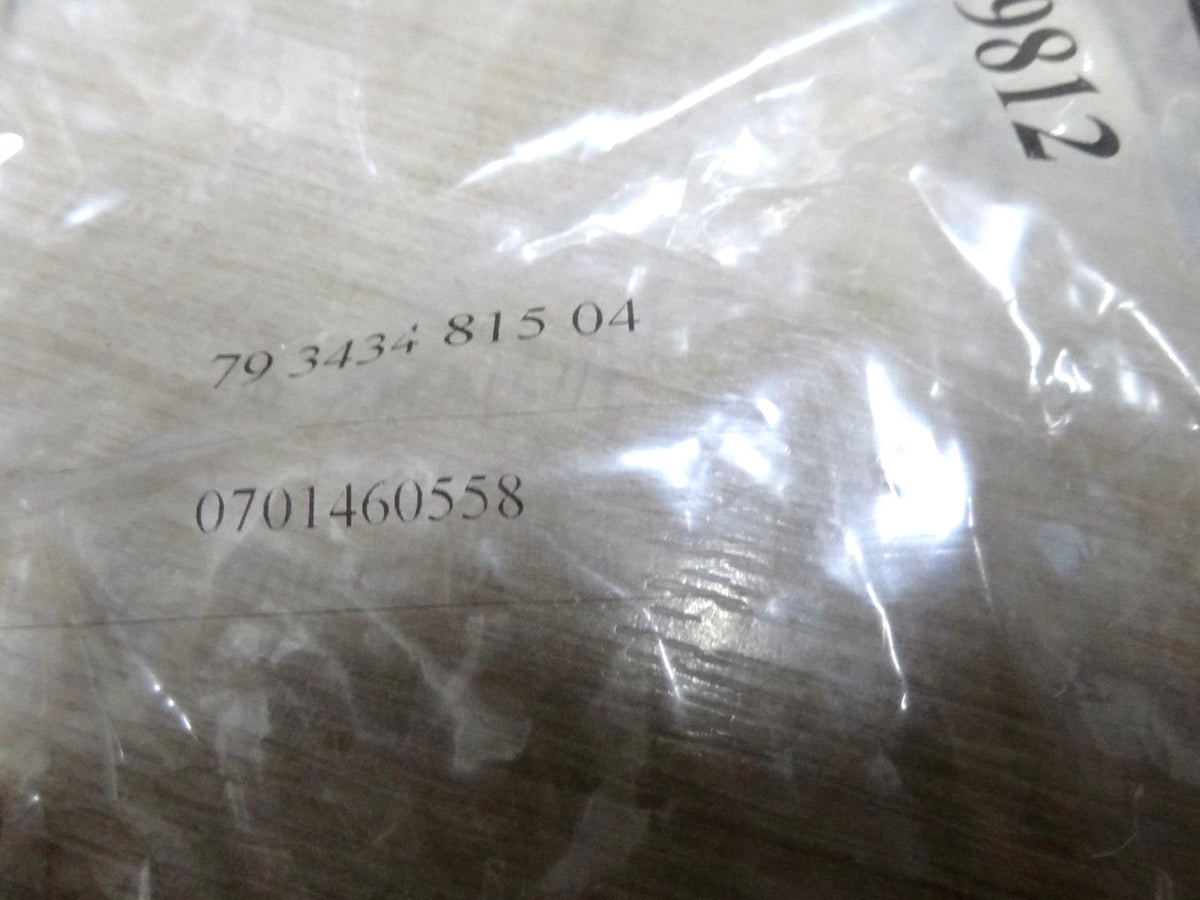

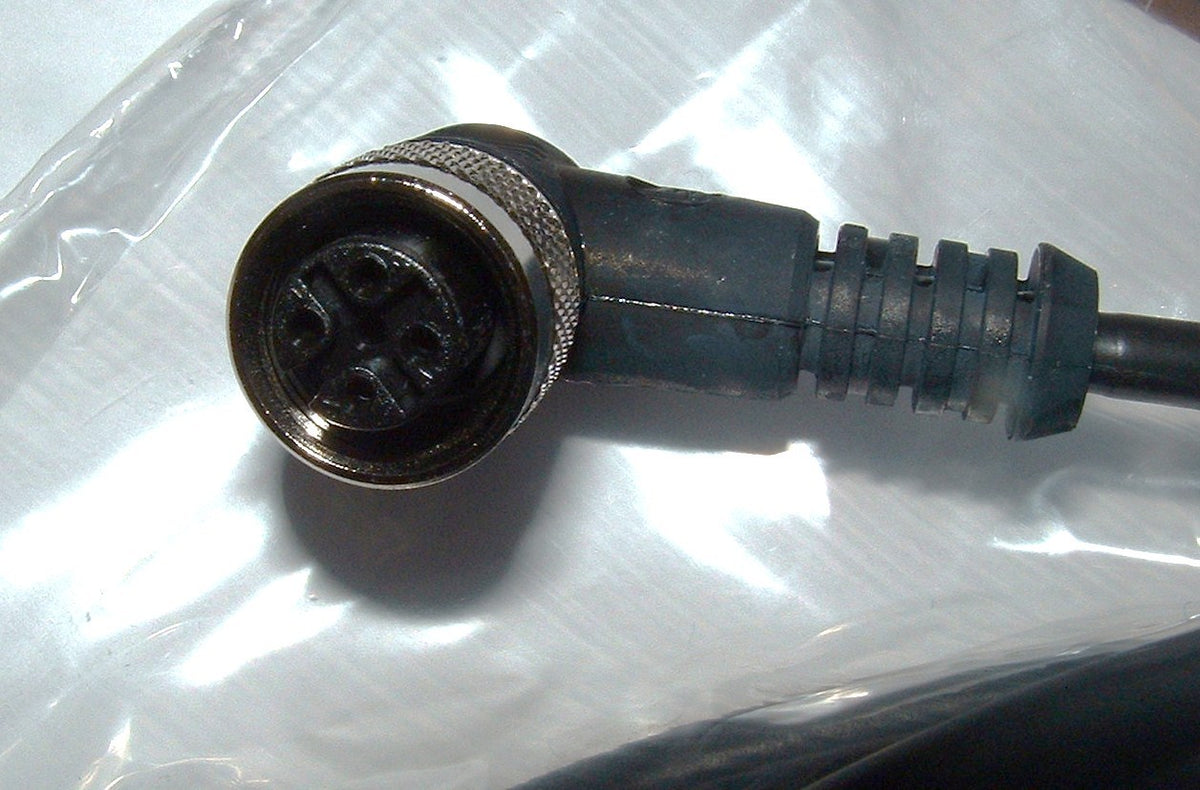

These are new and unused in  sealed Farnell branded bags the Farnell number is 3529812 the cable is 5m long with brown black and blue internal wires
 Check our other listings for the stronger cable version
Specifications
Locking System: M12 A-Coding
Number of Contacts: 3
Gender: Female
Shell Material: Plastic
Maximum Diameter (mm): 14.5
Mounting Style: Cable-mounted
Termination: Overmolded
Protection: IP 68
Shielding: non-shielded
Contact Plating: Gold
Rated Voltage (V): 250
Rated Current (A): 4
Cable Length (M): 5
Cable Material: PVC
Wire Gauge (max AWG): 22
Form: Right-angle
The Series 763 M12 locking, single-ended cordsets are a Euro-style sensor connector ideally suited for factory automation, process control, industrial instrumentation, and commercial electronics. Connectors have industry-standard A-coding and have "Hexagon" locking sleeves for hand-tightening or torquing of connections. Cordsets are PUR or PVC overmoded with shielded or non-shielded versions. Some have UL approvals. Most have an environmental protection with an IP68 rating. Contacts are gold-plated and range from 3 to 12 per connector.

shelf CL8e3
