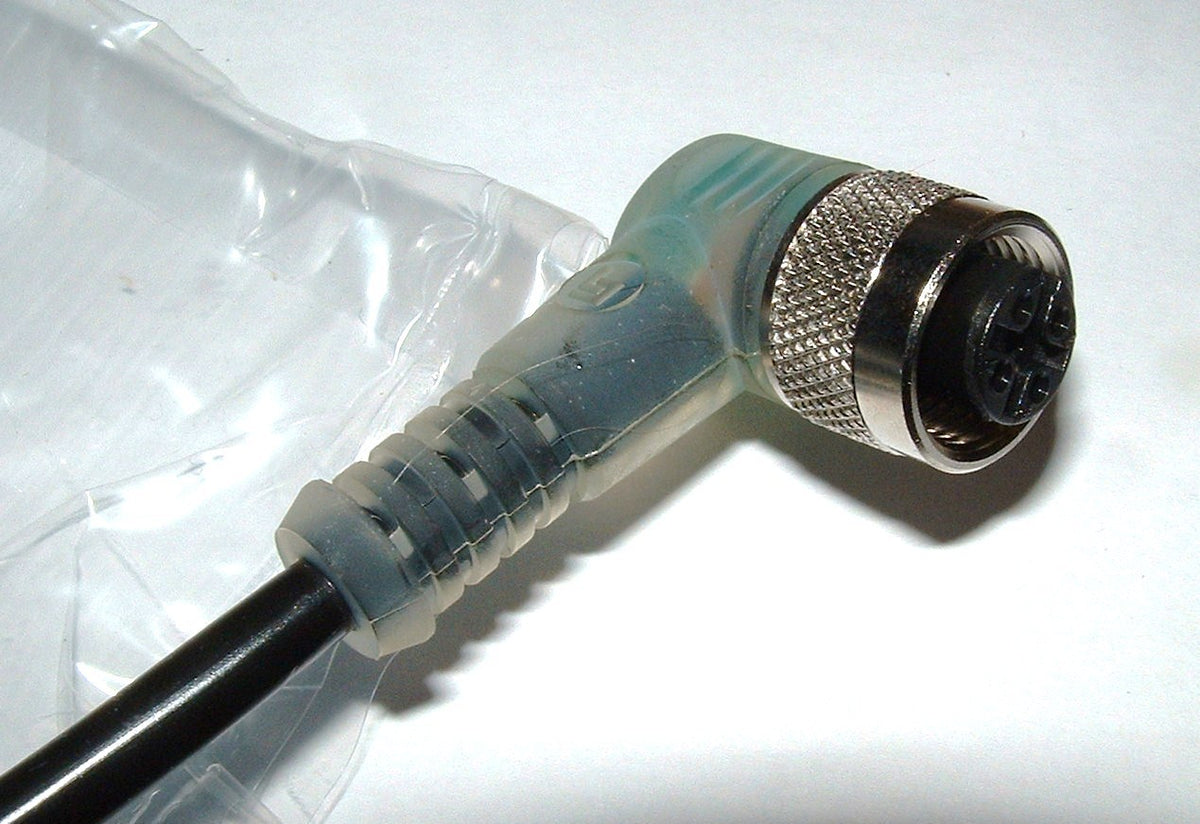

Binder Series 763 cordset 4 way 90° female plug, NPN sensor cable 79 3456 32 04

Binder Series 763 cordset, 90° female plug LED indicators (NPN) (normaly opened) 2m PUR cable
These are new and unused in  sealed Farnell branded bags the Farnell number is 3481086 the cable is 2m long with four internal wires the Binder part no is  79 3456 32 04
Specifications
Locking System: M12 A-Coding
Number of Contacts: 4
Gender: Female
Shell Material: Plastic
Maximum Diameter (mm): 14.5
Mounting Style: Cable-mounted
Termination: Overmolded
Protection: IP 68
Shielding: non-shielded
Contact Plating: Gold
Rated Voltage (V): 250
Rated Current (A): 4
Cable Length (M): 2
Cable Material: PUR
Wire Gauge (max AWG): 22
Form: Right-angle
The Series 763 M12 locking, single-ended cordsets are a Euro-style sensor connector ideally suited for factory automation, process control, industrial instrumentation, and commercial electronics. Connectors have industry-standard A-coding and have "Hexagon" locking sleeves for hand-tightening or torquing of connections. Cordsets are PUR or PVC overmoded with shielded or non-shielded versions. Some have UL approvals. Most have an environmental protection with an IP68 rating. Contacts are gold-plated and range from 3 to 12 per connector.
